CNC Drilling Machine SKD-6125LGE8

SKD-6125LGE8
1、Three Drill Chucks,8Positions Tools Changer
2、Three spindle design,Multi-function Six Sides Drilling &Milling

Consult

Features
Technical Indicators
Overall Dimension

Application：
1、Application for production process of drilling，Grooving& Milling for panel-type furniture
2、Six Sides Drilling
3、S-Shaped Grooving
4、Symmetry Drilling
5、Horizontal Grooving&Milling
6、Straight Slotting
Mechanical Characteristics：

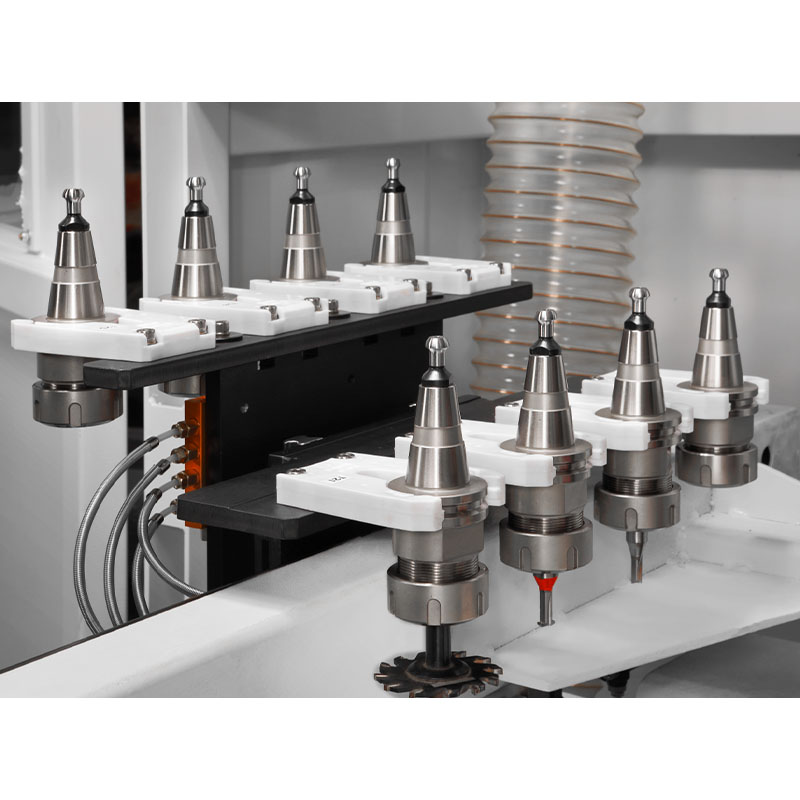

1、8Positions Tools Changer
2、Movable Air Floating Working Table

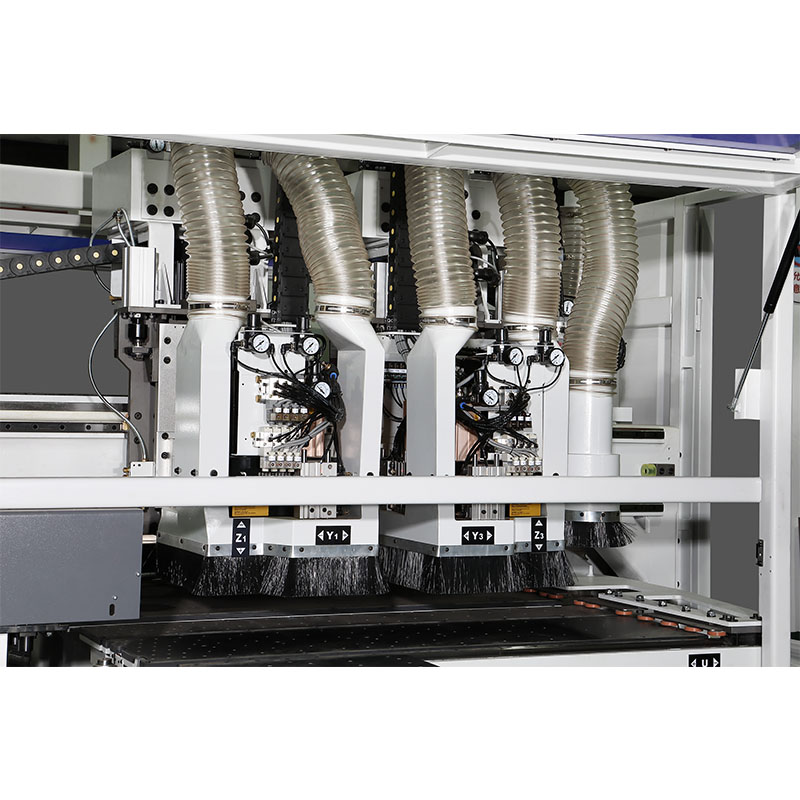

3、Upper Double Drill Chucks
4、Drilling & Milling Structure
Product advantages：
1、Adopt Germany CNC bus system. Machinery can connect with variety brands of production data.
2、SANDAR Intelligent Automatic Tool Changing Six Sides Drilling Machine, based on the traditional six sides drilling, adopt 9KW electro-spindle with 8 positions tools storage.
3、Application for production of Lamello,Invisible connector, Side hinge, Horizontal sawing & milling etc.
4、One machine with multiple functions, Completely solve all problem of drilling and non-holes connection panel-type furniture.
5、The equipment can be equipped with a variety of tool shapes and sizes and different specifications of the drill.
6、It can complete the six-sided drilling and milling machining of the workpiece at one time,and efficiently solve various milling and drilling process problems
Min.width of work-piece ： 35mm（Without side milling）/ 50mm（With side milling） Max.width of work-piece ： 1200mm（Without side milling） Min.Length of work-piece ：250mm（Without side milling）/ 400mm（With side milling） Max.Thickness of work-piece ：60mm（Without side milling）/50mm（With side milling） Working table height ：950mm Total power ：43.4KW Air pressure ：0.6-0.8Mpa Weight ：4800KG Diameter of suction port ：6550X3950X2200 mm
