CNC Drilling Machine SKD-S6125L

SKD-S6125L
1、Adopt German Bus Control System
2、6 Sides Drilling

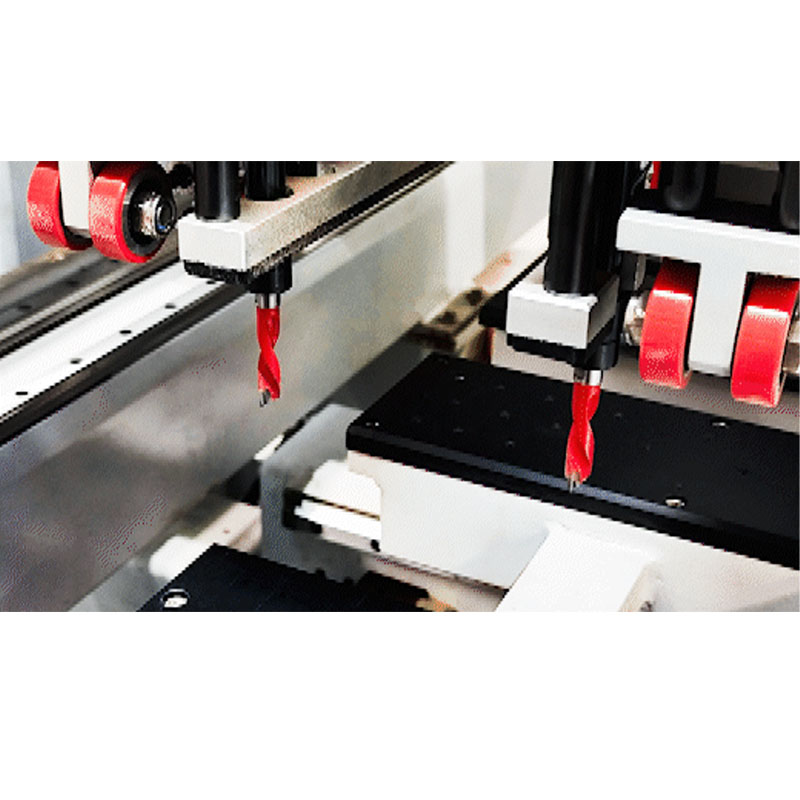

3、Three Drill Chucks、Double Spindles Design

Mechanical Characteristics：
1、The minimum vertical drilling hole spacing is 96mm

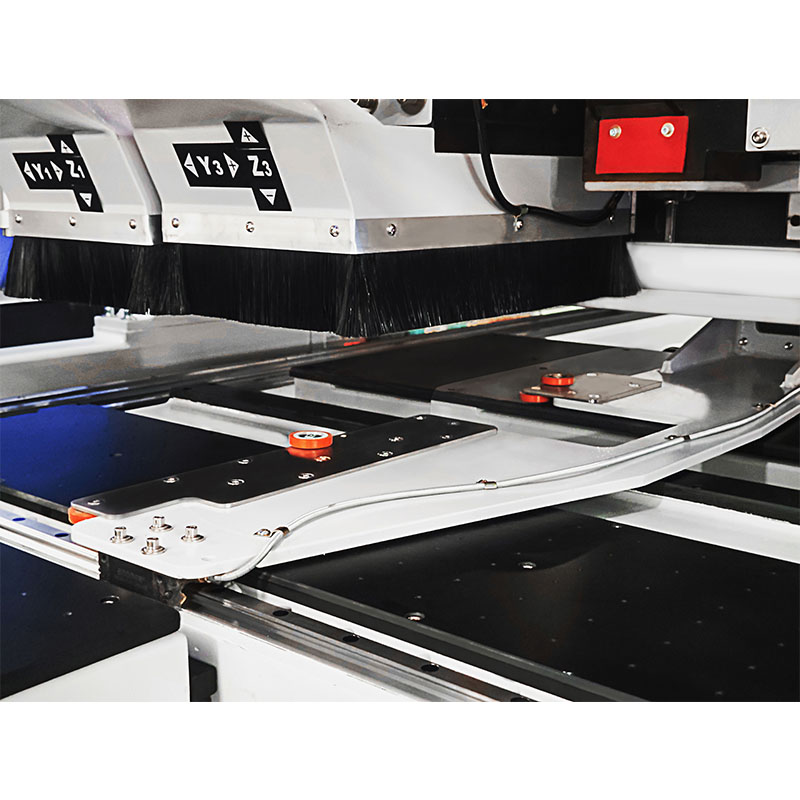

2、Servo Controlled Automatic Side Aligning Device

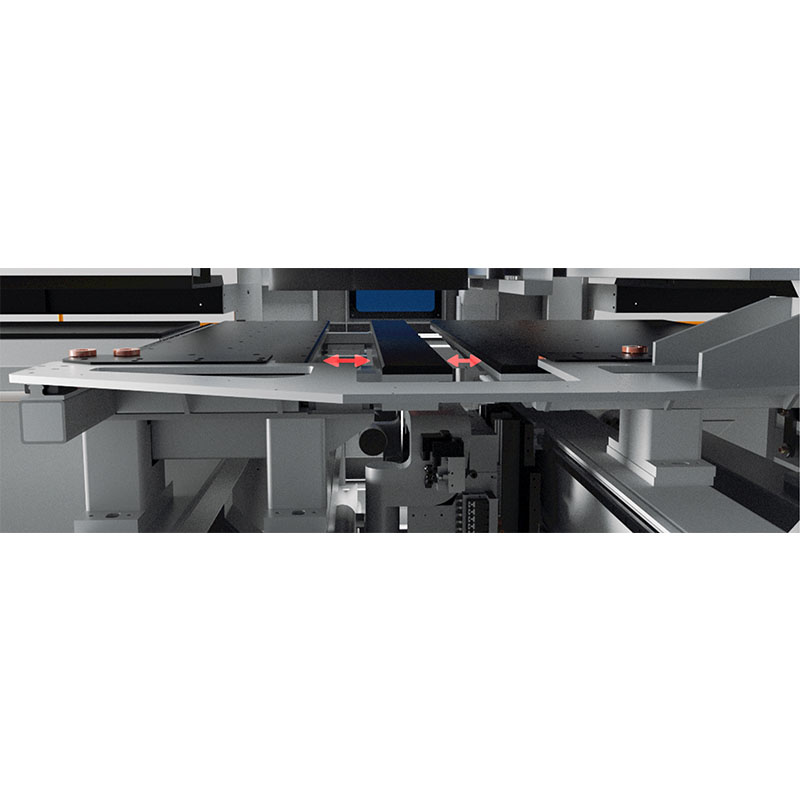

3、Movable Air Floating Working Table
4、Three Drill Chucks、Double Spindles Design
5、Apable of six-sided drilling and up & down milling
6、Double spindles design ( one single spindle can achieve dual functionscapable of processing vertical grooves and side grooving simultaneously )
7、The minimum horizontal drilling hole spacing is 160mm
Product advantages：
1、Adopt Germany CNC bus system. Machinery can connect with variety brands of production data.
2、One machine with multiple functions, Completely solve all problem of drilling and non-holes connection panel-type furniture.
3、Machinery installed with biaxial symmetric double drill chucks.
4、SKD-S6125L can work together for processing the coaxial holes on the same work-piece,double improve the processing speed.
1、Min.width of work-piece：35mm 2、Max.width of work-piece ：1200mm 3、Min.Length of work-piece ：250mm 4、Max.Thickness of work-piece： 60mm 5、Working table height ：930mm 6、Total power：23KW 7、Working Voltage ：380V,50HZ 8、Air pressure：0.6-0.8Mpa 9、Overall dimensions：5350X3020X2050mm 10、Weight：4000KG 11、Diameter of suction port：Ф200mmX2，Ф125mmX1
