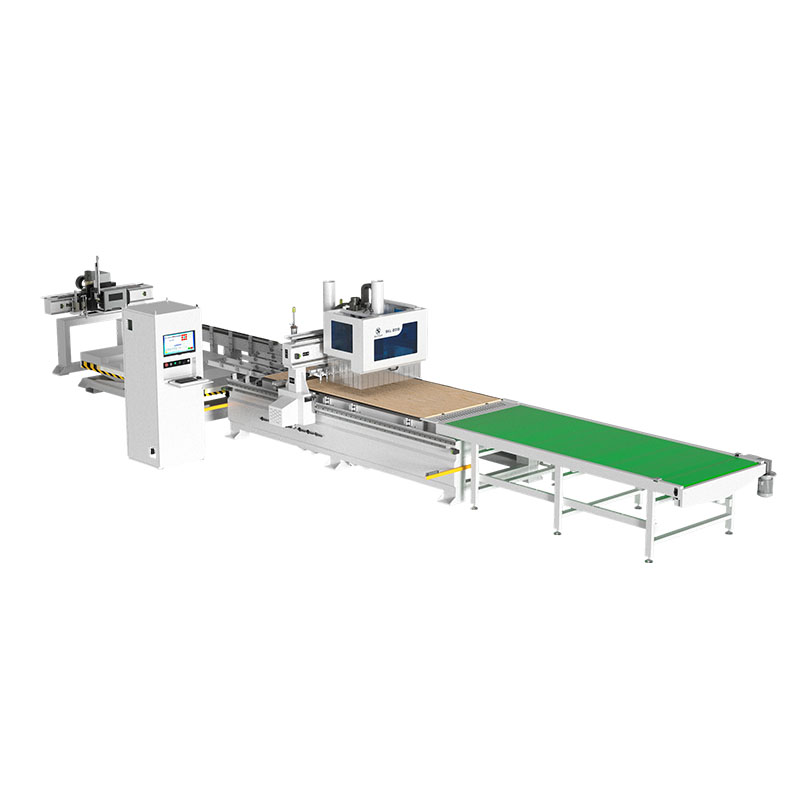

CNC Panel Processing Center

SKL-2813EL
1、Adopt German control system,integrated CAM softwarethat can carry out sheet metal graphical editing and directly generate NC program for processing.
2、Machinery can connect with variety brands of productiondata software, directlyimport production data , realizes intelligentseamless connecting to production.

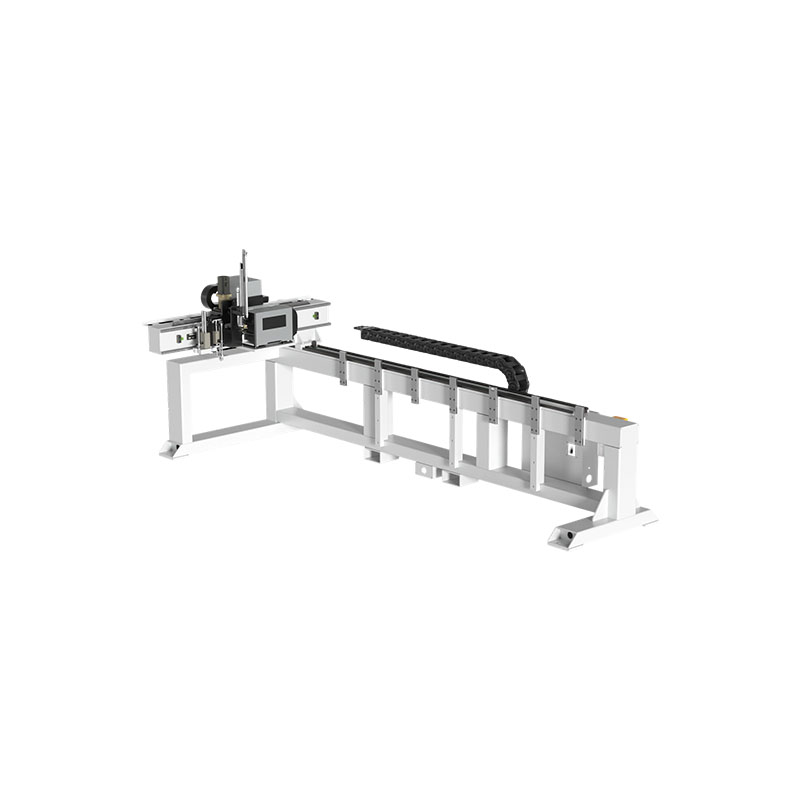

3、Automatic production code printing &labeling ,which adaptto digital production management,increase efficiency ofthe production management.

Consult

Features
Technical Indicators
Overall Dimension

Product advantages：

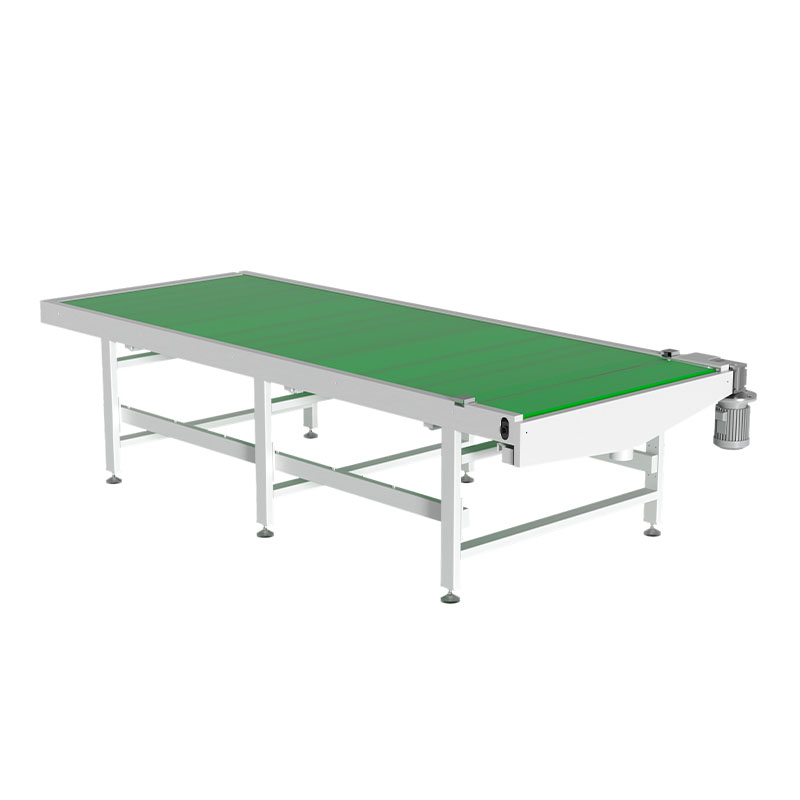

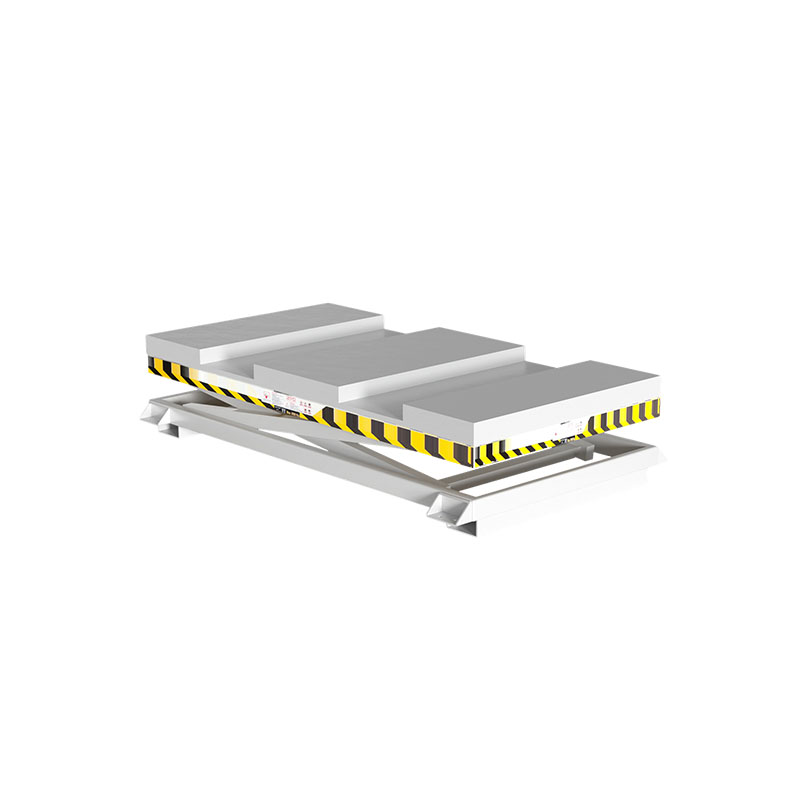

Device that with patented design can enhance machineryautomation.lt can finish automatic high speed cutting.drilling and milling,meanwhile auto feeding, working tablecleaning and out feeding can operate and finish at thesame time.which save processing time and increase production.
Application：
1、Application to CNC routing, milling, cutting &drilling(optional)for different kinds of furniture and solid wood panel..Realized automation production, which reduce the relianceon manual work.Most specialized in processing the customized furniture,that improve production efficiency and prod.uct precision.
2、Machine is application to processing following materies:Fiber board,Particale board,Melamine Plate,Wood pan.els,Gypsum board,Cardboard,Plexiglass etc.
1、Working Table Size：2800mmx1300mm 2、Max. Work-piece Thickness：50mm 3、Min. Work-piece Length: 200mm 4、Suction Ports Quantity ： Φ150mm x 2，Φ100mmx1 5、Air Pressure： 0.6-0.8Mpa 6、Total Power ：34KW 7、 Machinery Net Weight ：4500kg 8、Machine Dimention：11360x2250x2560mm
